Flame Scanner

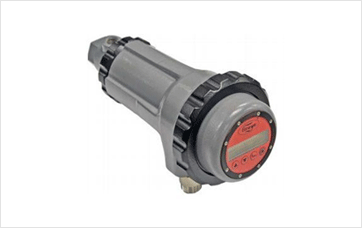

INSIGHT SCANNERS®
(95IR/95UV/95DS) FLAME SCANNER
The Fireye InSight Type 95IR, 95UV, and 95DS flame scanners are microprocessor based flame scanners utilizing solid state infrared (IR), ultraviolet (UV) or dual (IR and UV) sensors.

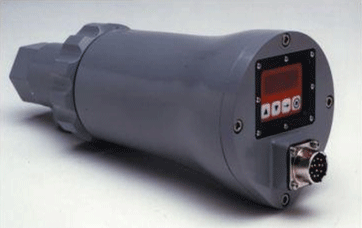

INSIGHT Ⅱ
(95DSSS3) FLAME SCANNER
The Fireye InSight Ⅱ Type 95DSS3 flame scanners are microprocessor based flame scanners utilizing solid state Infrared (IR) and ultraviolet (UV) sensors.

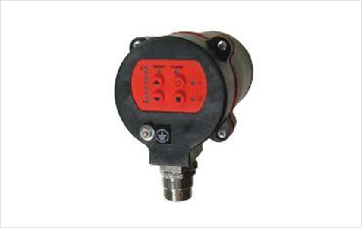

PHOENIX™
(85UVF) FLAME SCANNER
Fireye Phoenix 85UVF self-checking scanners are used to detect ultraviolet emissions from fossil fuel flames such as natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates and diesel fuels.

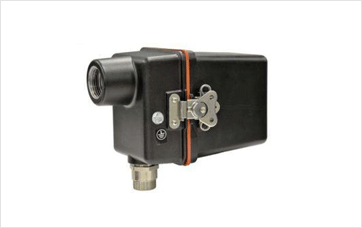

SIMPLICITY™
(65UV5) FLAME SCANNER
Fireye 65UV5 self-checking scanners are used to detect ultraviolet emissions from fossil fuel flames such as natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates and diesel fuels.
Igniter & Pilot Burner

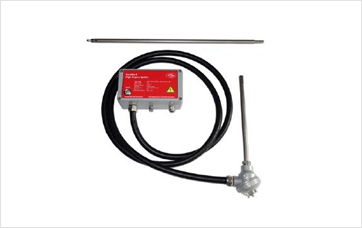

SUREFIRE™
IGNITERS
High Energy Igniters (HEI) are Class 3 igniters used for direct spark ignition of oil or gas igniters and small burners
- Non-fouling spark tip, self-cleaning, highly reliable.Produces a 12 joule spark even in the presence of moisture, oil and carbon deposits.
- Removable spark tip. Replacement is quick and easy.
- Flexible cable connects the power pack to the spark rod assembly ensuring operator safety.
- Standard and retractable HEI models are available to fit a variety of igniter or burner types.

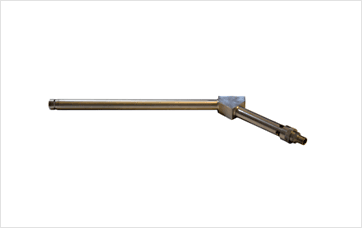

Surefire Ⅱ
Pilots
This Instruction Manual contains a description of the type SP-32-xx-FD gas pilot construction, operation principle and the instructions for installation, start-up and service, including the industrial health & safety recommendations. The SP-32-xx-FD forced draught (xx = NG - Natural gas or PG - Propane gas) gas pilot is a reliable and effective source of ignition for oil and gas burners. The pilot is constructed of high quality materials and each unit is checked and tested before dispatch. Acquaintance with the following instructions and strict attention to the indications reduce the possibility of equipment failure to a minimum and ensure safety during normal operation.
- Small diameter, 32mm OD
- Capacity, nominally 15 to 30KW range
- Natural & Force Draught draught
- HESI or Spark and sense ignition
- ATEX zone 1 power pack

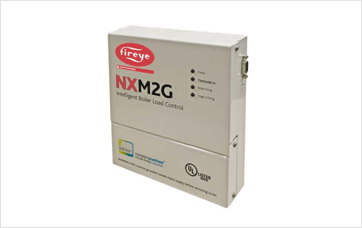

NXM2G
NXM2G EFFICIENCY CONTROL
The NXM2G is designed to prevent boiler dry cycling which occurs when a boiler loses Heat to
its surroundings. The NXM2G is fully compatible with existing control systems And building
management.
Designed for use with low & medium temperature water boilers, single stage burners, Fully
modulating burners and many more.

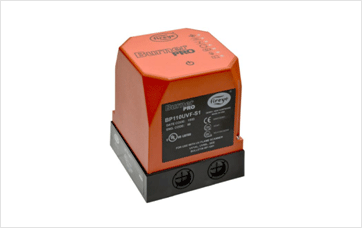

Burner Pro
BURNERPRO™
FLAME SAFEGUARD CONTROL
BurnerPRO F (BP110UVF/BP230UVF) Control, with integrated flame safeguard and boiler Control operation provides simplified operation for single point applications
